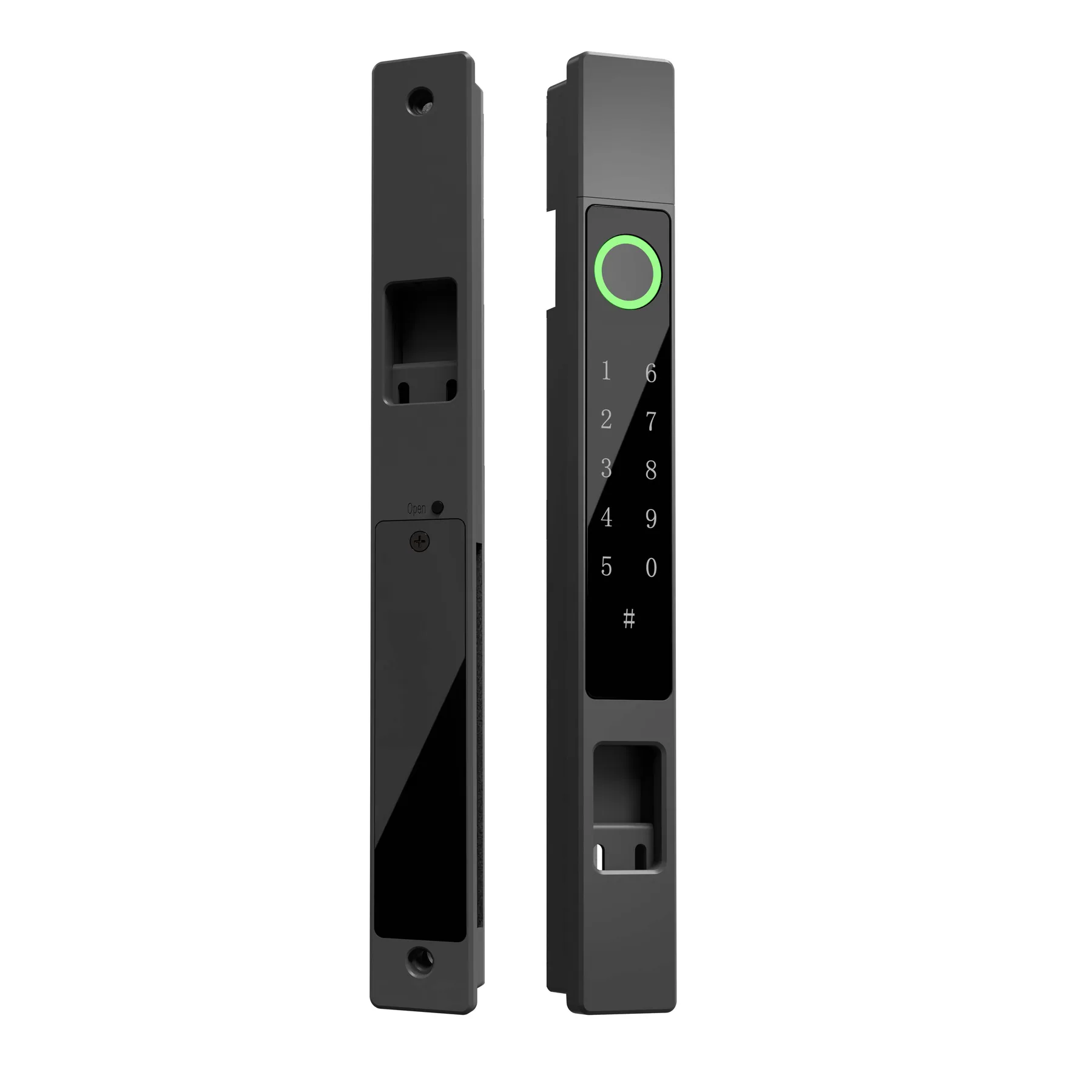

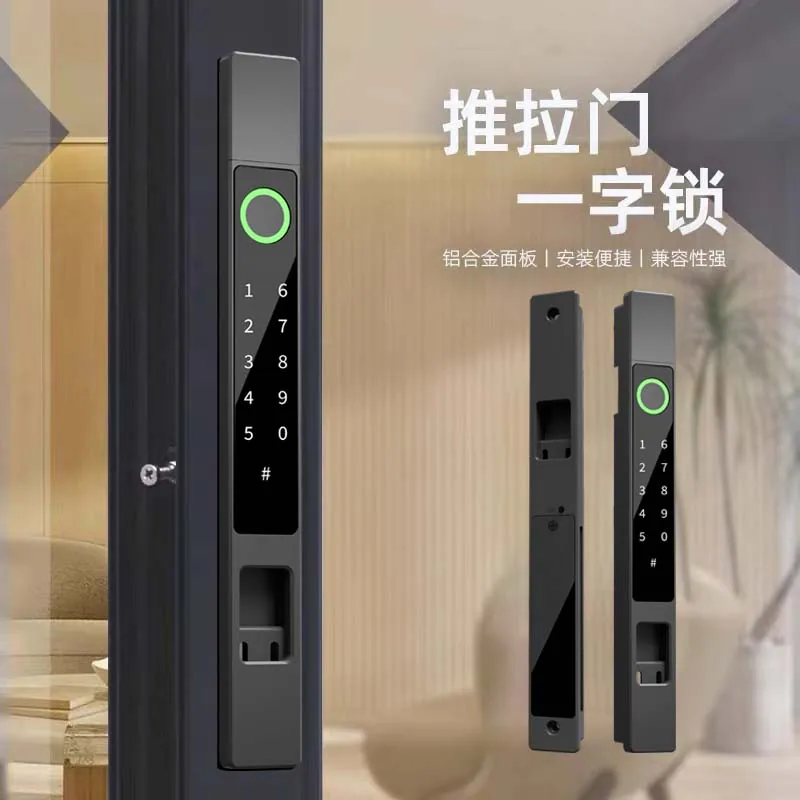

N1 Smart Sliding Door Lock
28 mm Slim Panel | Fingerprint, Passcode, IC Card & App Access
- Product type: Smart sliding door fingerprint lock
- Material: Aluminum alloy
- Color: Black

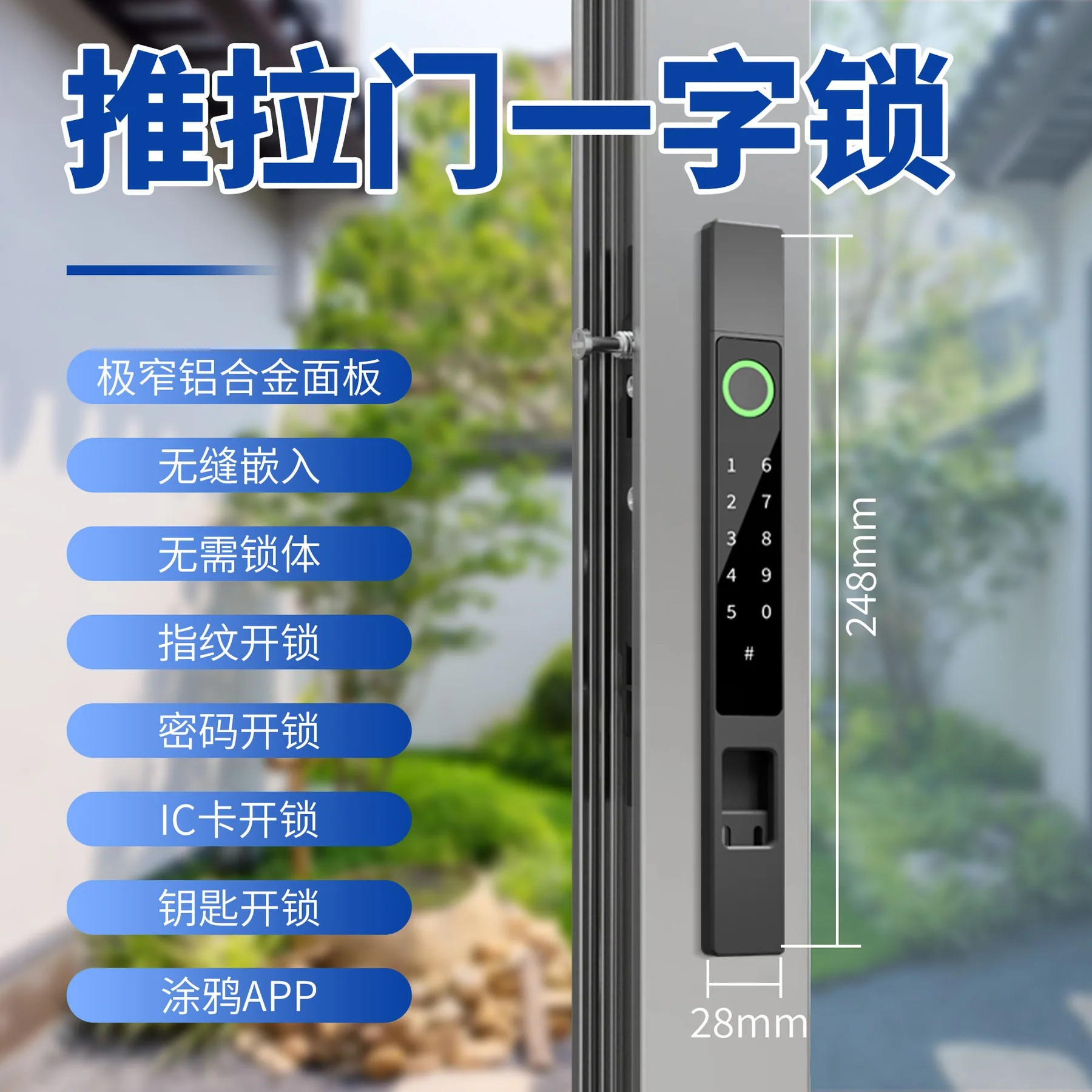

- Front panel size: 248 × 28 mm
- Lock-body dimensions: 24.7 × 17.8 mm (per supplied drawing)
- Door thickness: 35–50 mm
- Access methods: Fingerprint, passcode, IC card, mechanical key, Tuya Bluetooth app
Product Introduction
Designed for sliding doors, the WAFU N1 combines a slim 28 mm aluminum-alloy panel with multiple access methods and Tuya Bluetooth app control.
For Distributors & OEM Partners

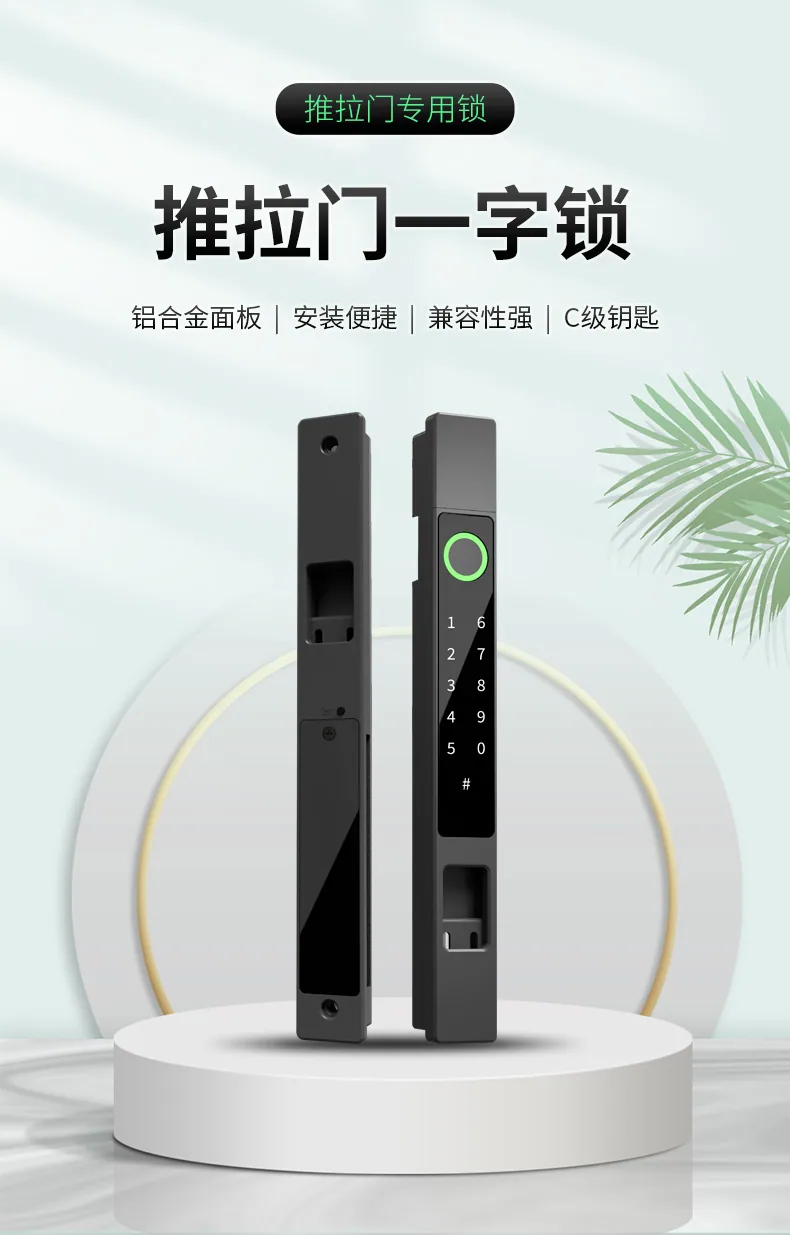

- A dedicated smart-lock solution for sliding and push-pull doors
- Aluminum-alloy faceplate with a slim 28 mm panel
- Black finish with a C-grade mechanical lock cylinder
- OEM/ODM options are available on request
Access & Convenience

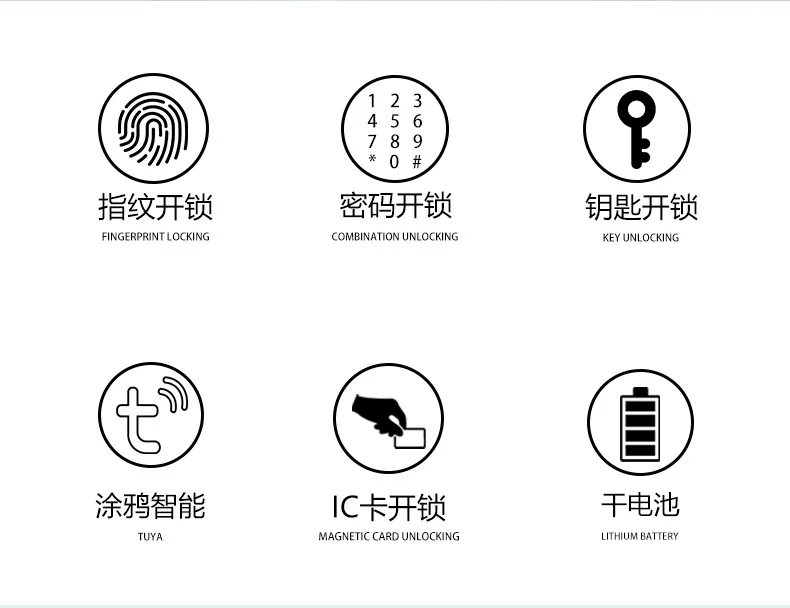

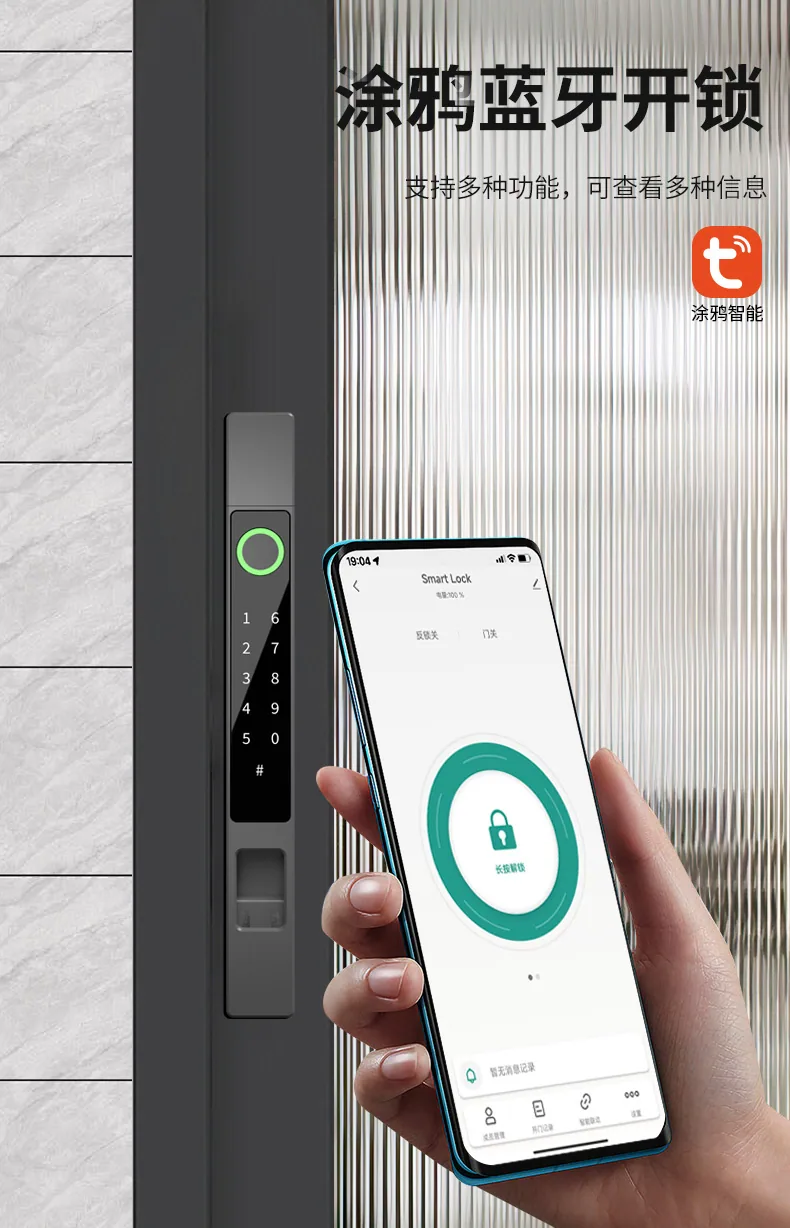

- Unlock by fingerprint, passcode, IC card, mechanical key or Tuya Bluetooth app
- Store up to 50 fingerprints, 20 passcodes and 50 IC cards

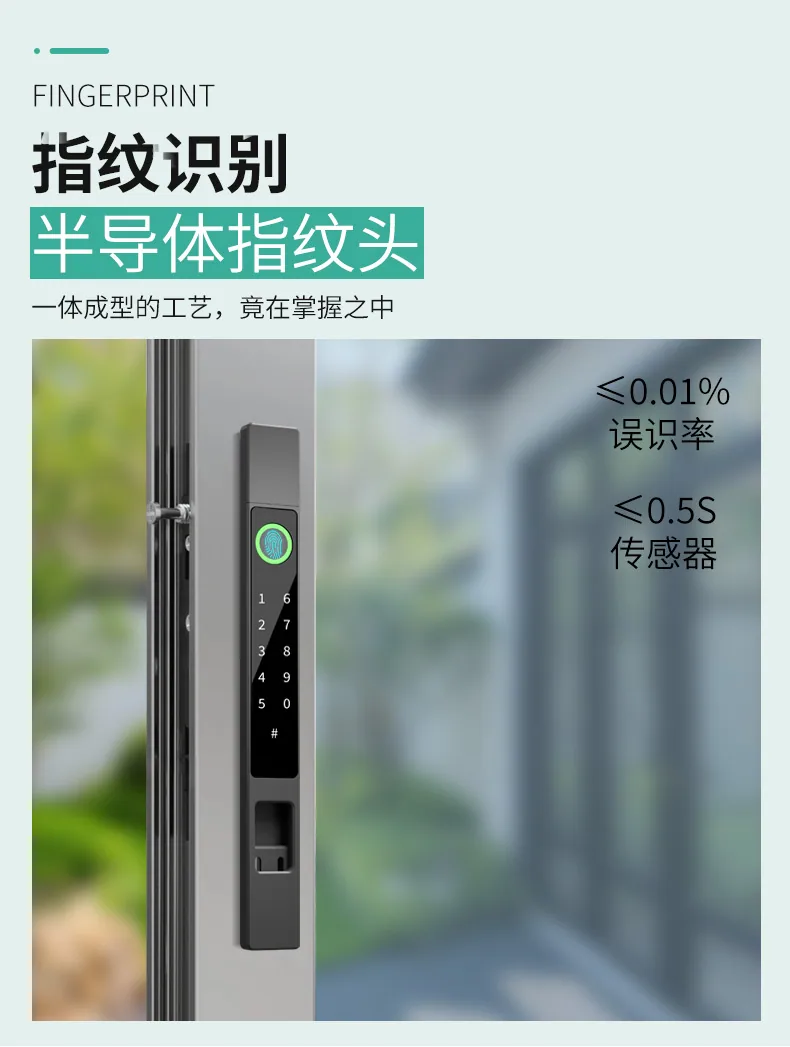

- Fingerprint recognition response: up to 0.5 seconds, as stated in supplied product material
- Share temporary access codes through the app; codes can expire
Power & Emergency Access
- Powered by 4 AA batteries
- USB Type-C emergency power input: 5 V

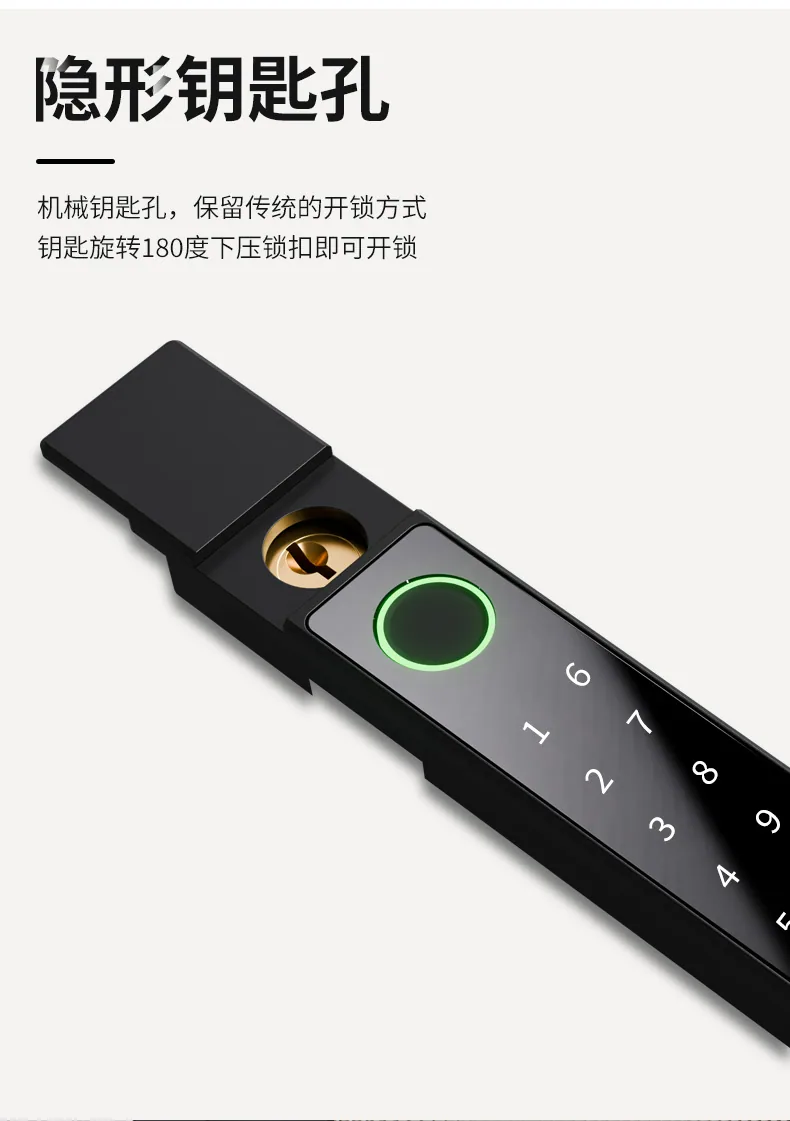

- Emergency mechanical key access

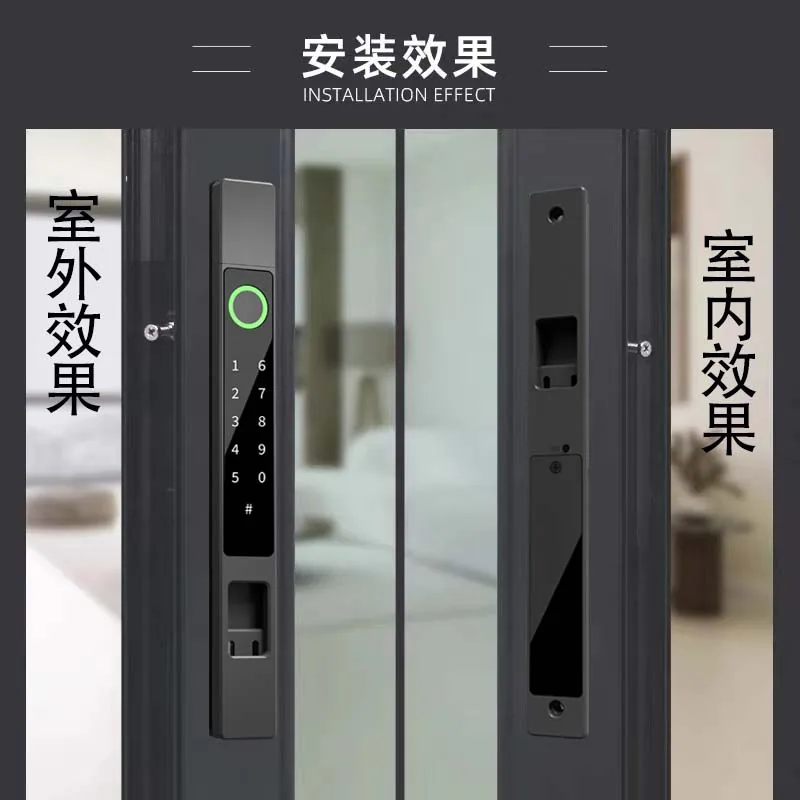

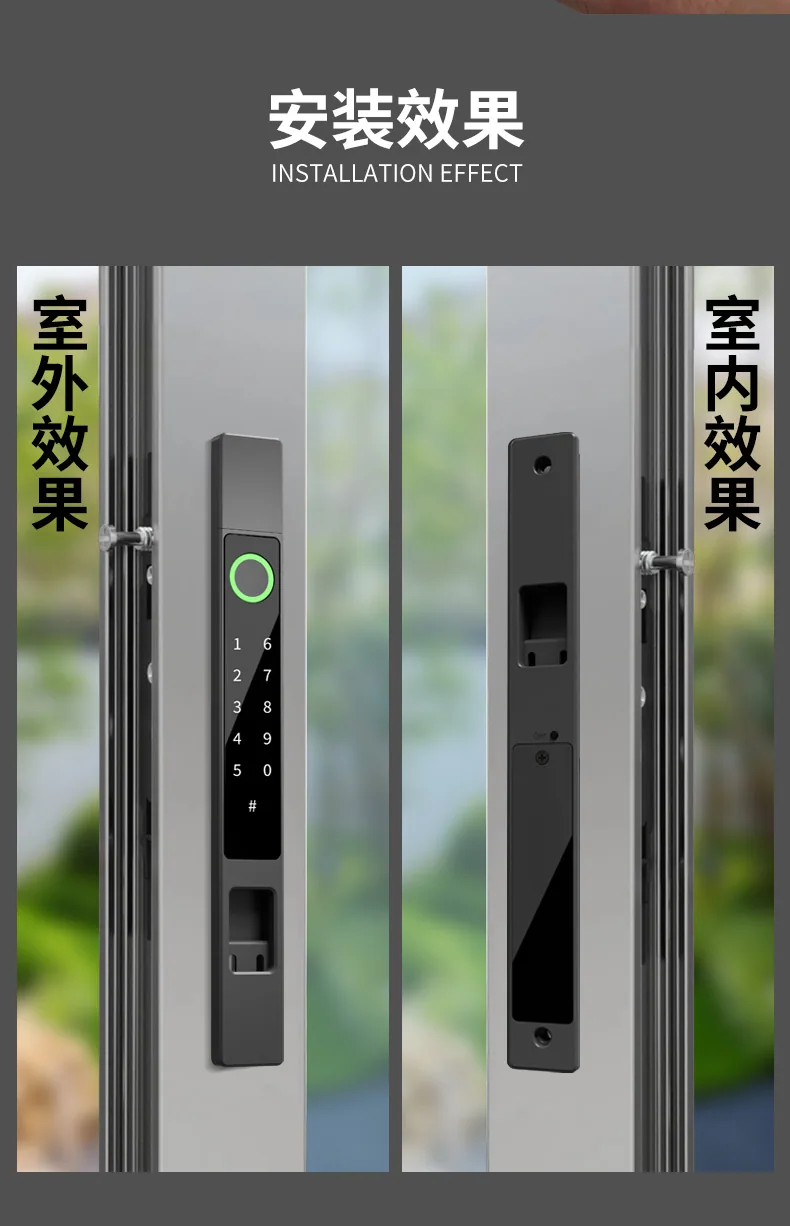

Fit & Installation
- For sliding and push-pull doors
- Suitable door thickness: 35–50 mm

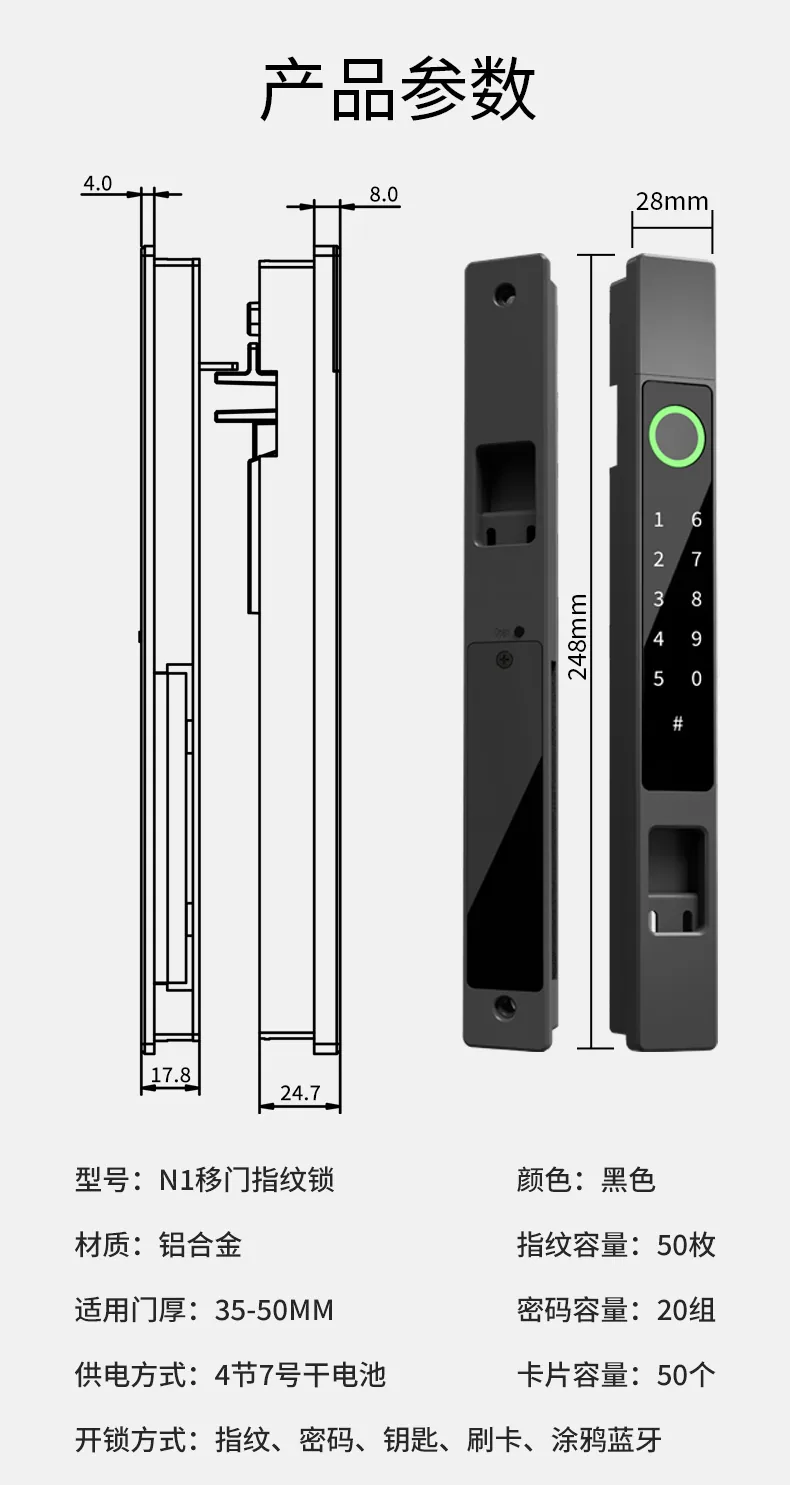

- Front panel: 248 × 28 mm; lock-body dimensions shown as 24.7 × 17.8 mm in supplied drawing
- Confirm door and lock-body compatibility before ordering
N1 Technical Specifications
| Attribute | Specification |
|---|---|
| Model | N1 |
| Product type | Smart sliding door fingerprint lock |
| Material | Aluminum alloy |
| Color | Black |
| Front panel size | 248 × 28 mm |
| Lock-body dimensions | 24.7 × 17.8 mm (per supplied drawing) |
| Door thickness | 35–50 mm |
| Access methods | Fingerprint, passcode, IC card, mechanical key, Tuya Bluetooth app |
| Fingerprint capacity | 50 |
| Passcode capacity | 20 groups |
| IC card capacity | 50 |
| Power supply | 4 × AA batteries |
| Emergency power | USB Type-C, 5 V |
| Lock cylinder | C-grade |
| Applicable door | Sliding / push-pull door |
N1 Product Details
