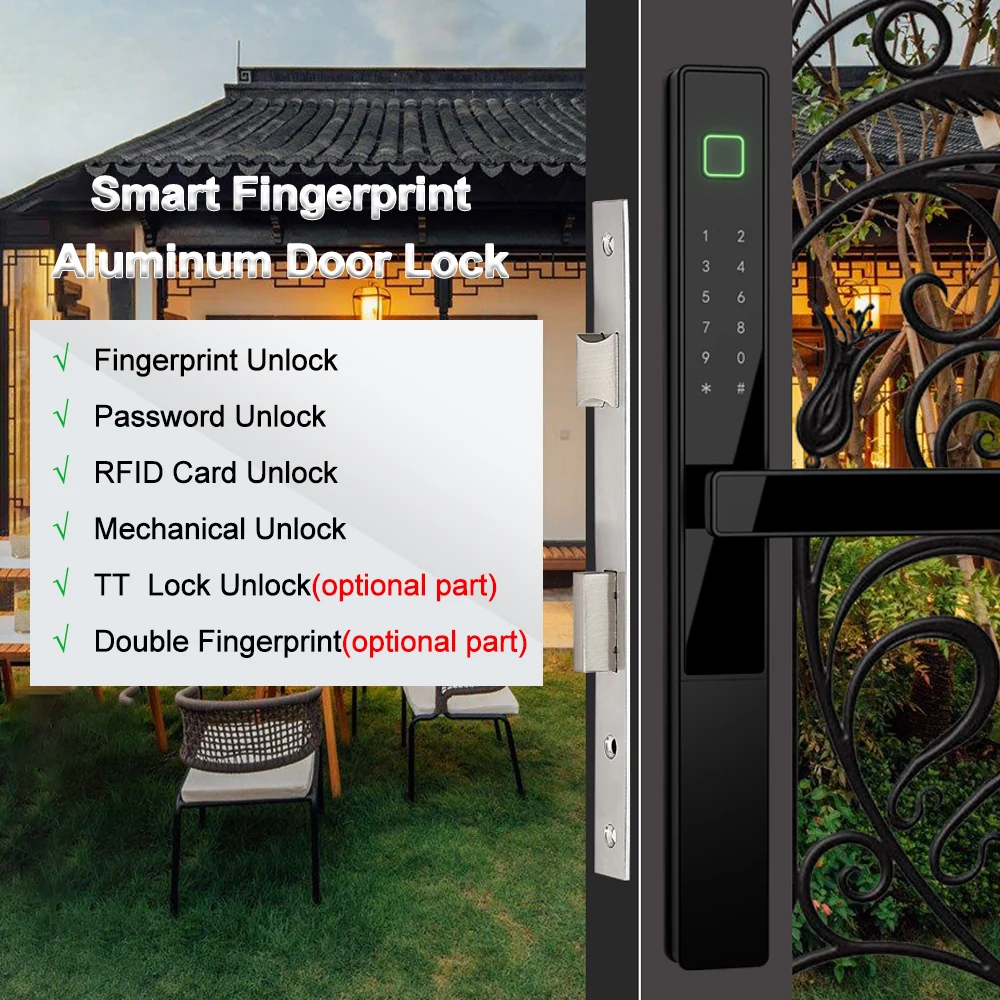

WF-023 Slim Aluminum Alloy Fingerprint Smart Lock
34 mm Narrow Panel | 4-in-1 Unlocking | 30-60 mm Door Fit | OEM/ODM Support
- Brand / Model: WAFU WF-023
- Material: Durable aluminum alloy with a slim 34 mm panel
- Unlock Methods: Fingerprint, password, RFID card and mechanical key
- Capacity: Up to 50 fingerprints, 50 cards and 20 password groups
- Power: 4 x AAA alkaline batteries, not included; approximately 6 months of use
- Door Fitment: 30-60 mm doors with a compatible 3585 mortise lock body

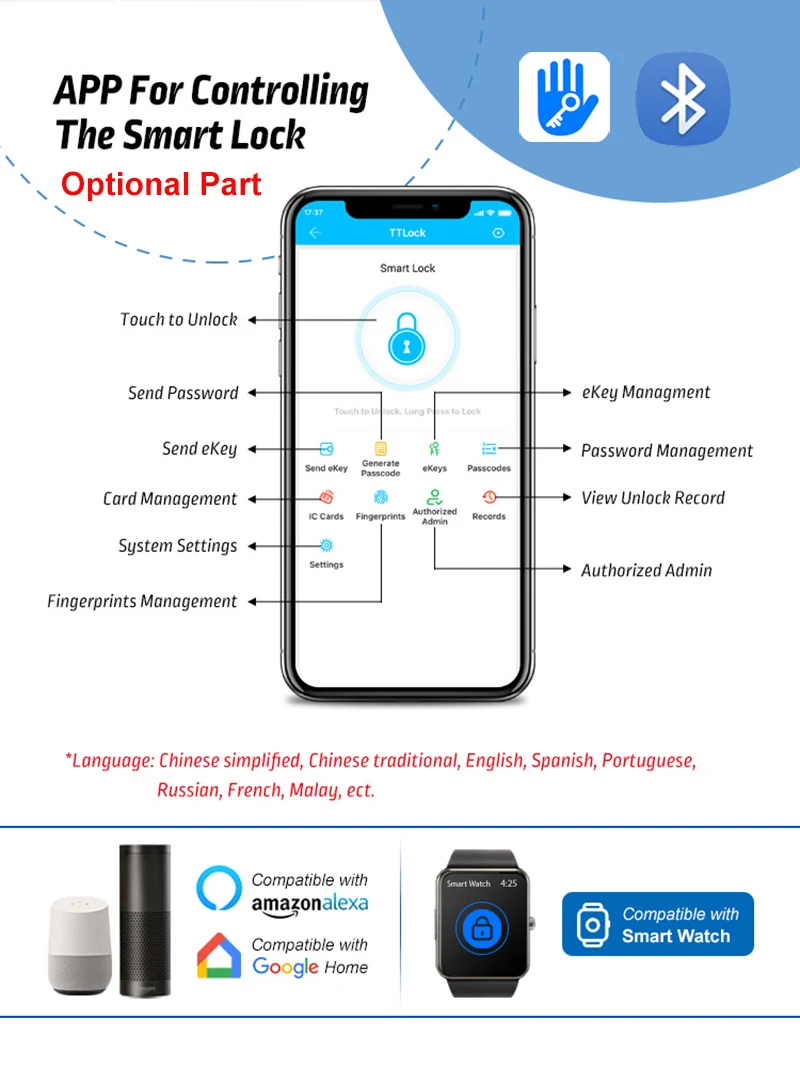

- Optional Functions: TT Lock App unlock and double-fingerprint configuration
- Applications: Aluminum, wood, steel and framed-door projects for homes, apartments, offices and hotels
Product Introduction
Narrow aluminum door profiles leave little room for a conventional smart lock. WF-023 uses a 34 mm slim panel to combine four everyday access methods in a clean handle-lock format for residential, apartment, office and hospitality projects.
For Wholesalers & OEM Partners
- Aluminum-alloy handle lock for narrow-profile door programs
- Black and silver finish options for different project styles
- Optional TT Lock App and double-fingerprint configurations
- OEM/ODM support for branding, packaging and project requirements
Access & Security

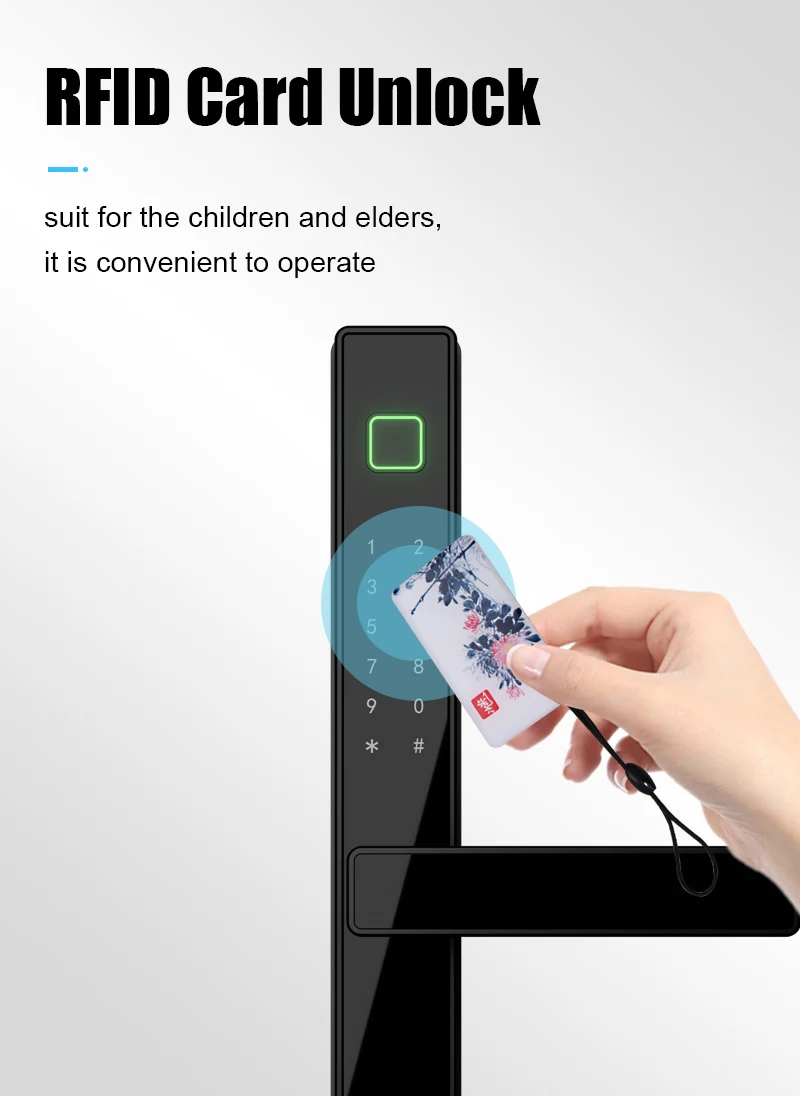

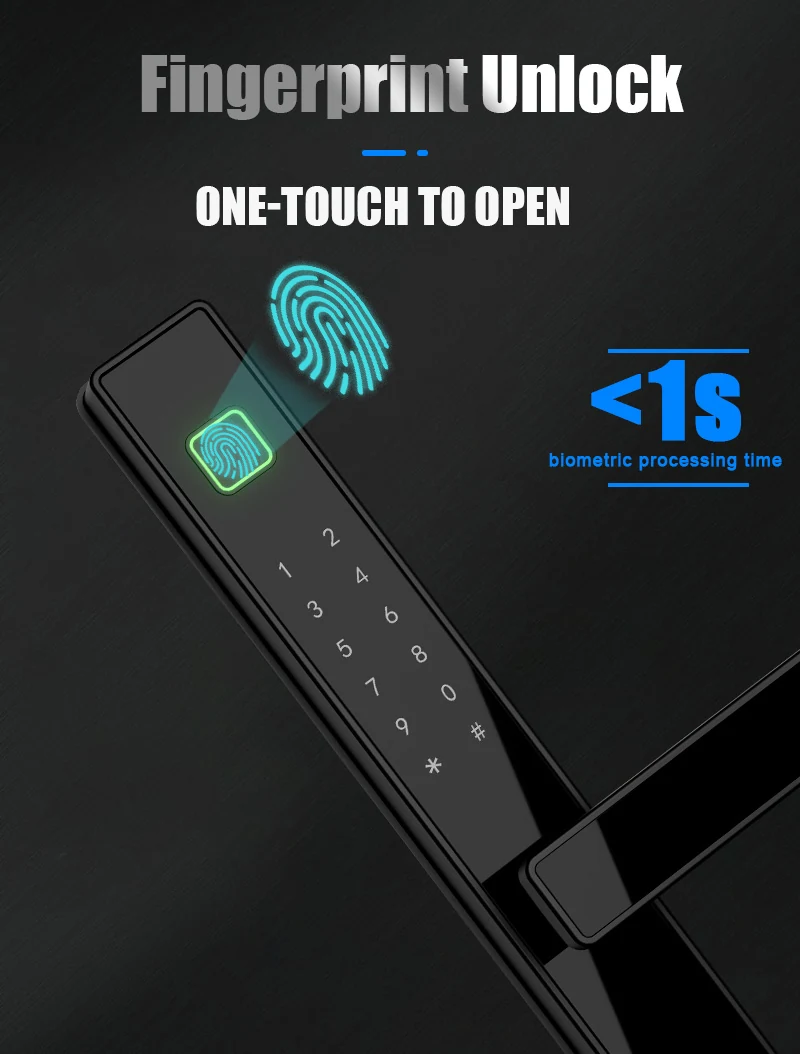

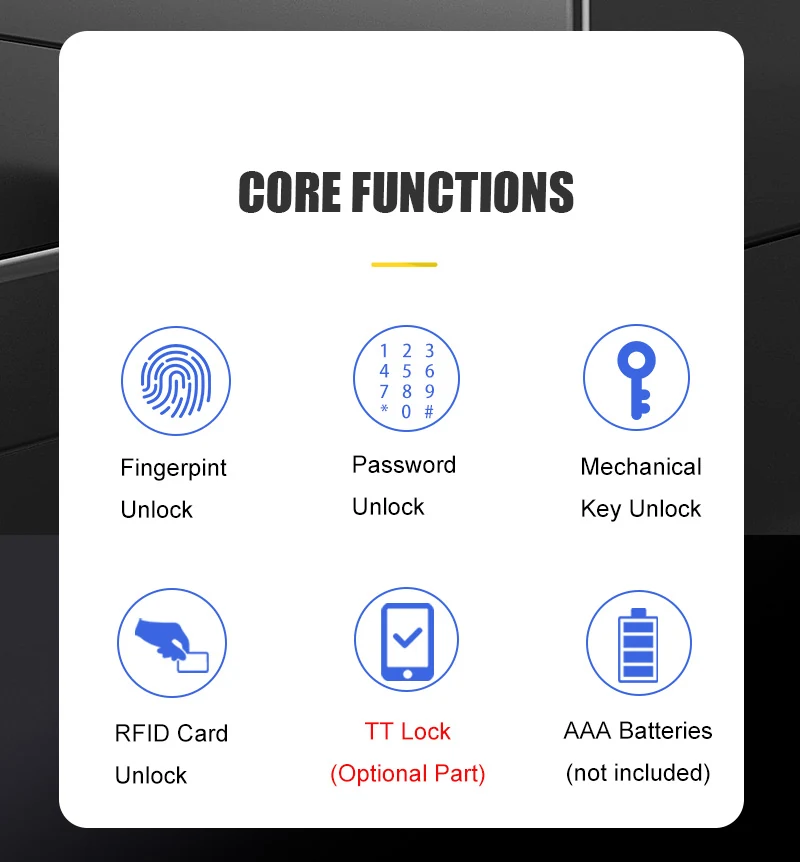

- 4-in-1 unlocking: fingerprint, password, RFID card and mechanical key
- Stores up to 50 fingerprints, 50 cards and 20 password groups
- Optional double-fingerprint configuration for selected project requirements
- Mechanical keys provide an emergency access method
Slim Door Compatibility

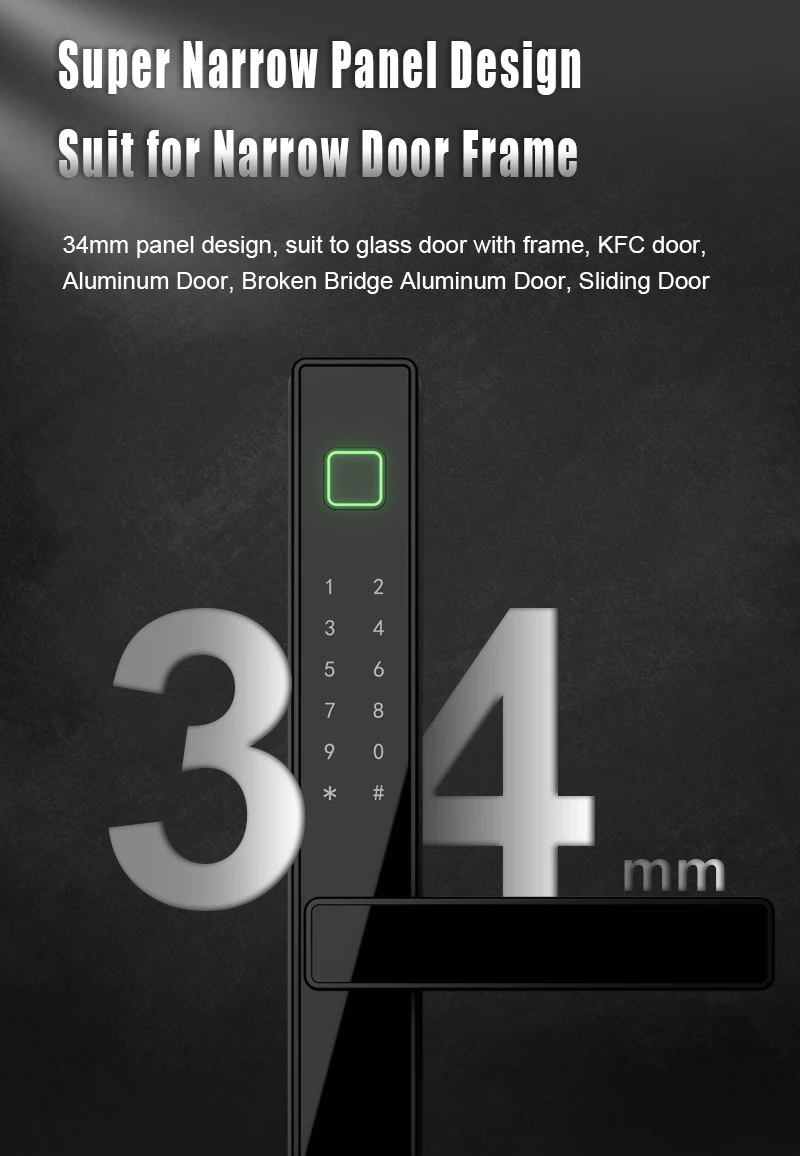

- 34 mm narrow panel designed for aluminum and other narrow-profile doors
- Suitable for compatible wood, steel, stainless steel and brass door installations
- Standard specification supports 30-60 mm door thickness

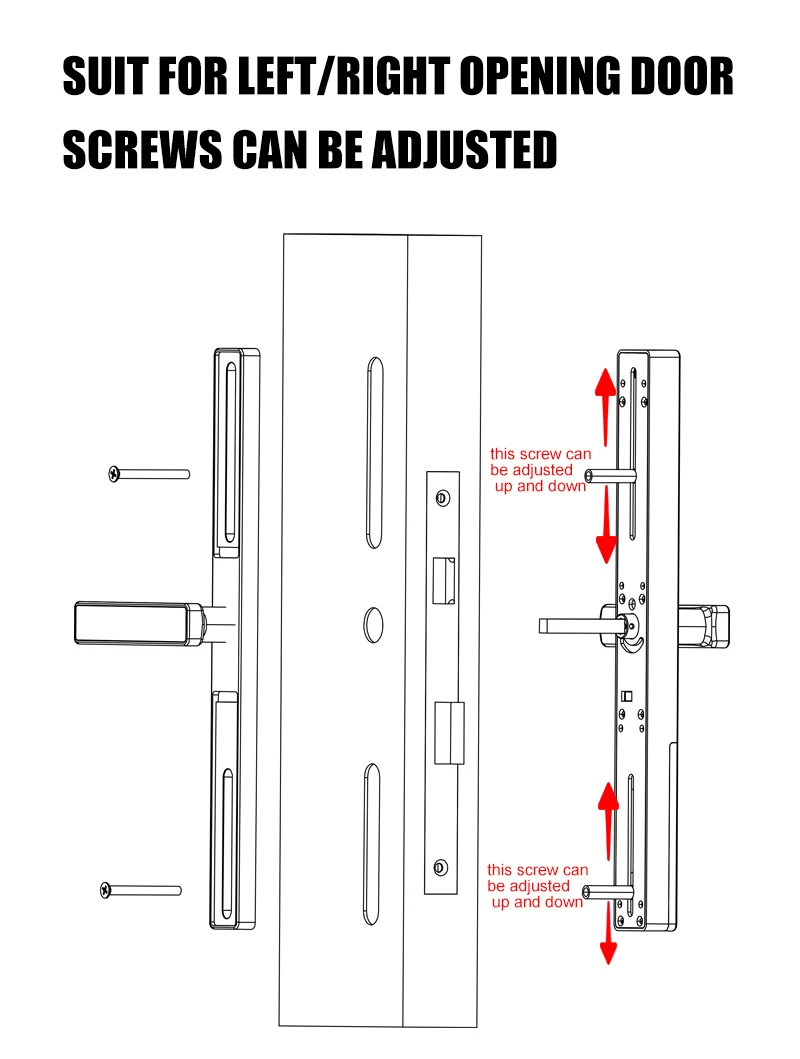

- Confirm door thickness, opening direction and mortise dimensions before ordering
Convenience

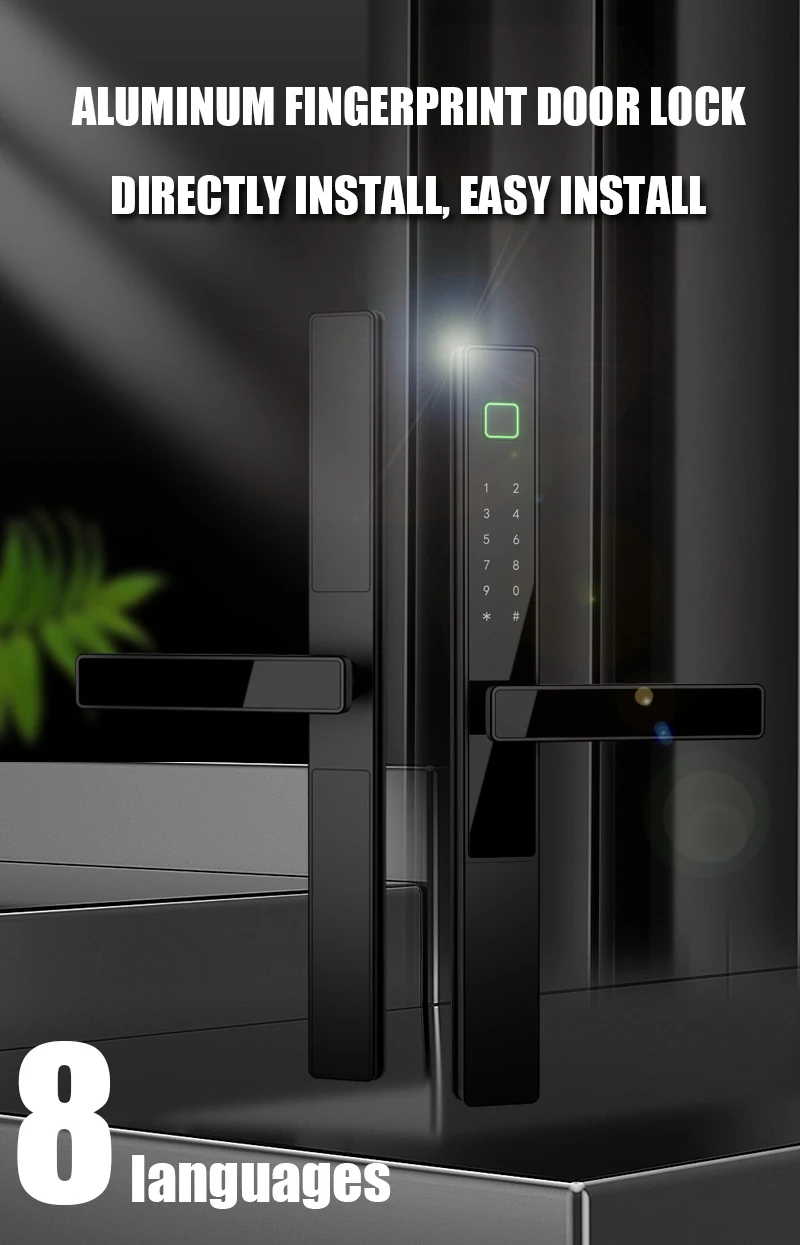

- Eight-language voice guidance: Chinese, English, French, Italian, German, Portuguese, Spanish and Russian
- Four AAA batteries power the lock for approximately six months under typical use
- 5V USB emergency power is available when batteries are low
Related Products & Guides
- Compare with the WF-016 Handle Lock for retrofit handle-lock projects
- See the WF-V2 aluminum panel smart lock for face-plate applications
- Review smart lock OEM/ODM partner guidance
- Explore apartment, office and hotel applications

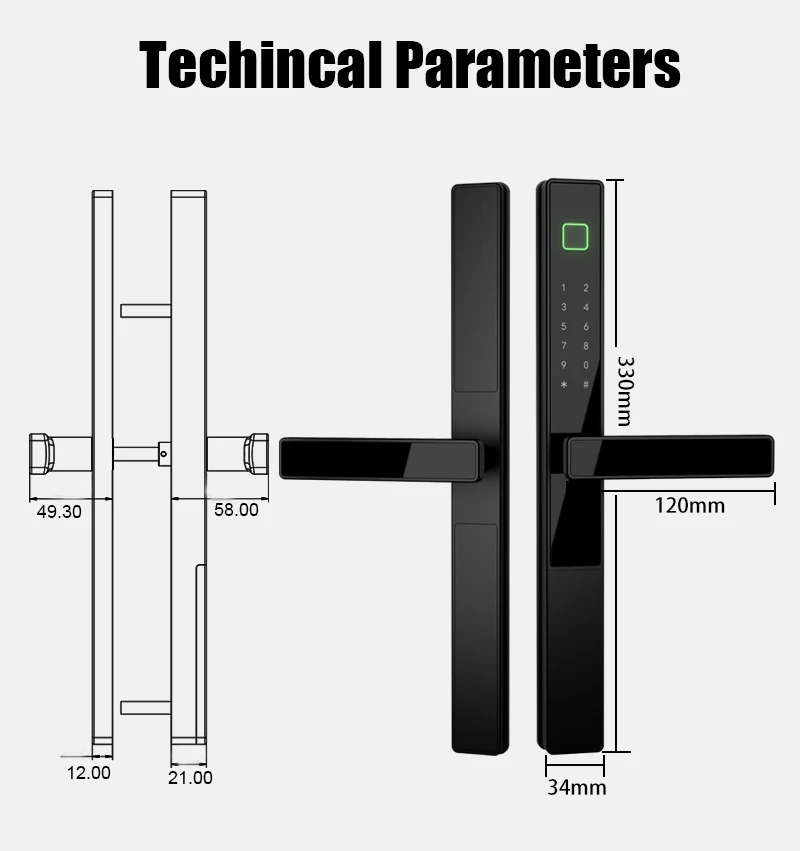

WF-023 Detailed Technical Specifications
| Attribute | Specification |
|---|---|
| Model Number | WF-023 |
| Brand Name | WAFU |
| Material | Aluminum alloy |
| Color | Black / Silver |
| Panel Width | 34 mm narrow panel |

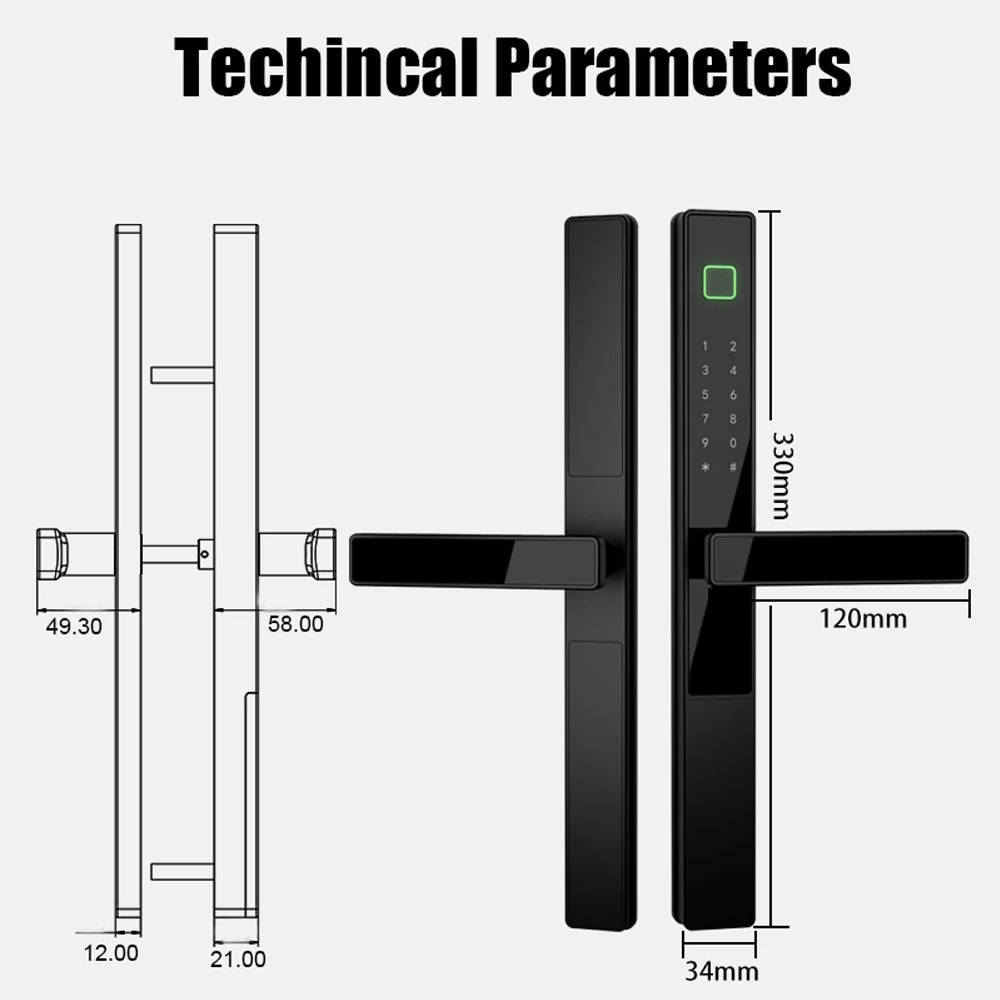

| Product Size | 330 x 34 mm |

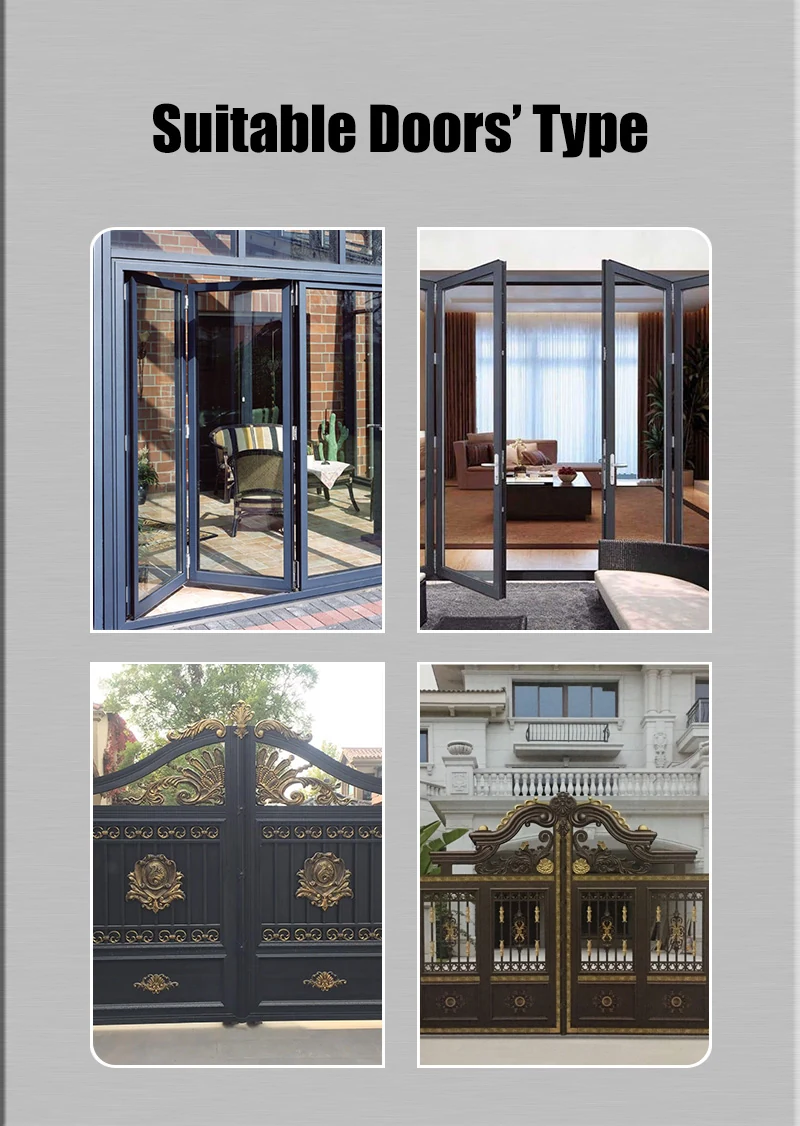

| Door Type | Aluminum, wood, steel, stainless steel and brass doors; confirm project fit before ordering |
| Door Thickness | 30-60 mm |

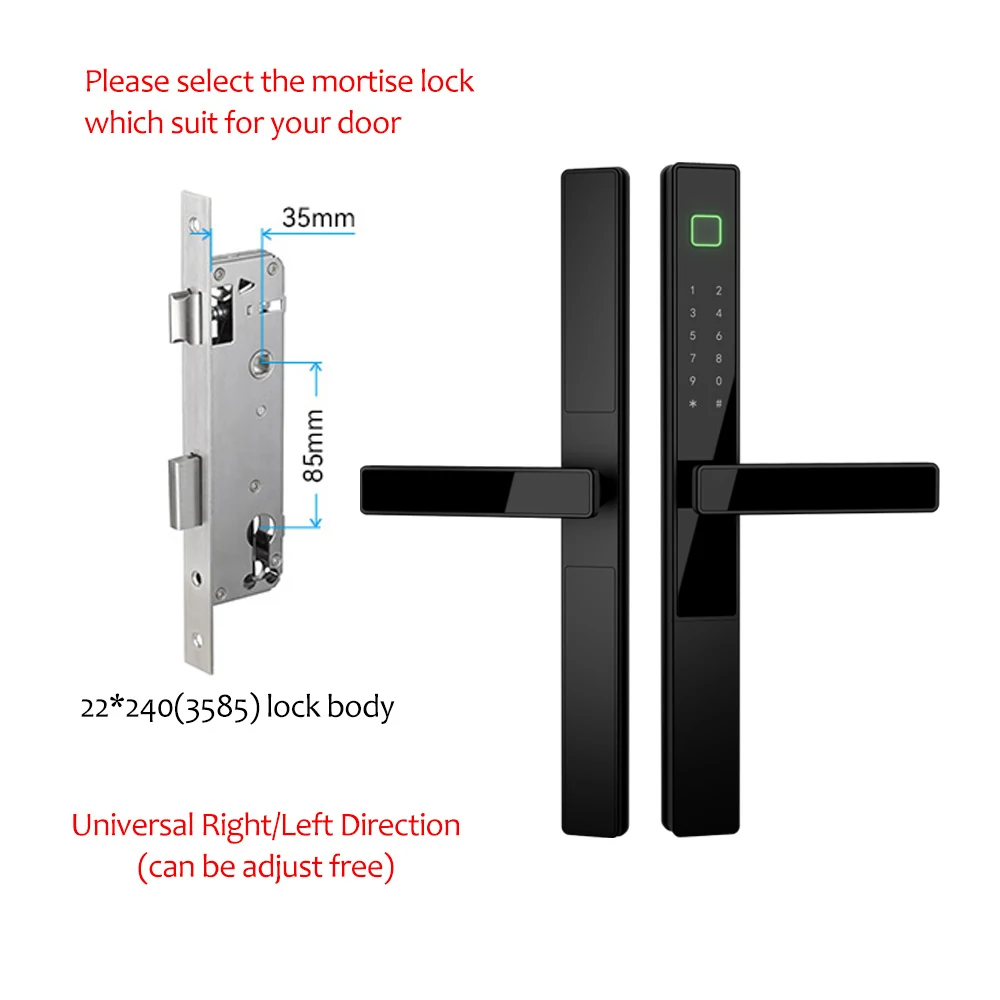

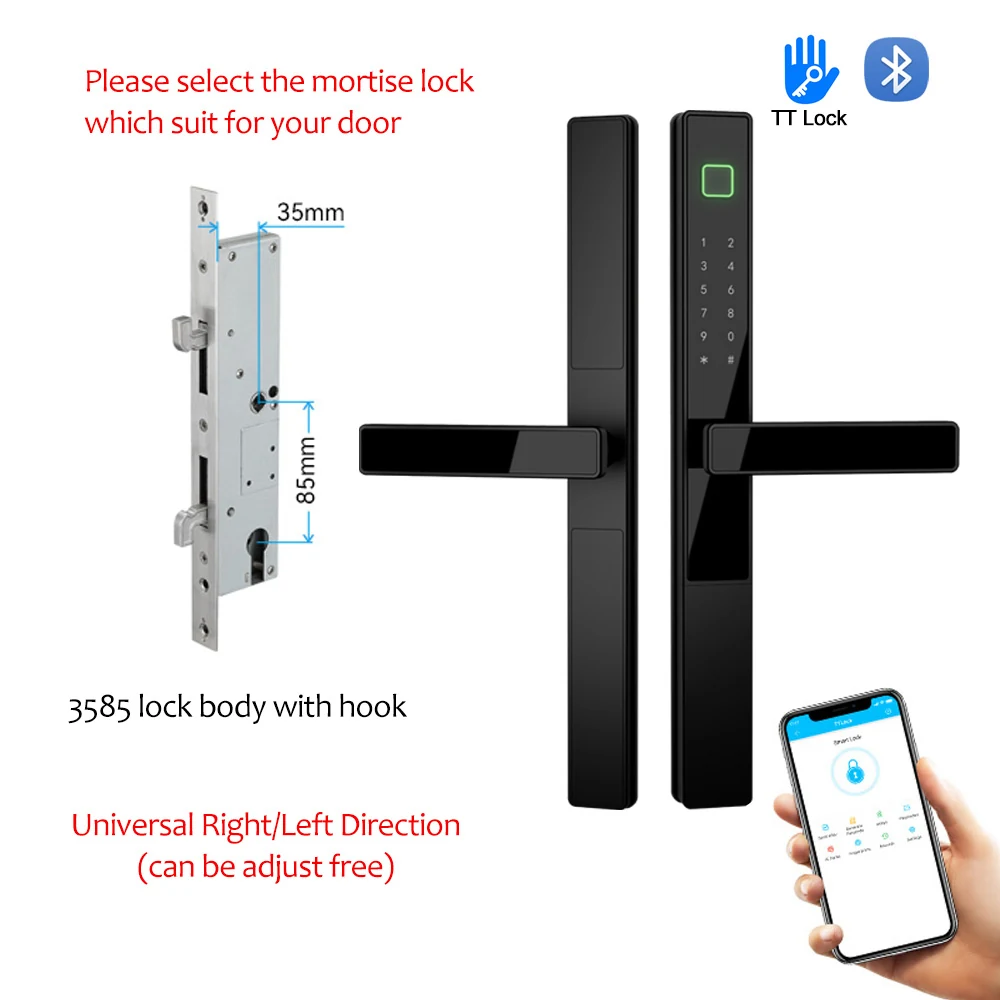

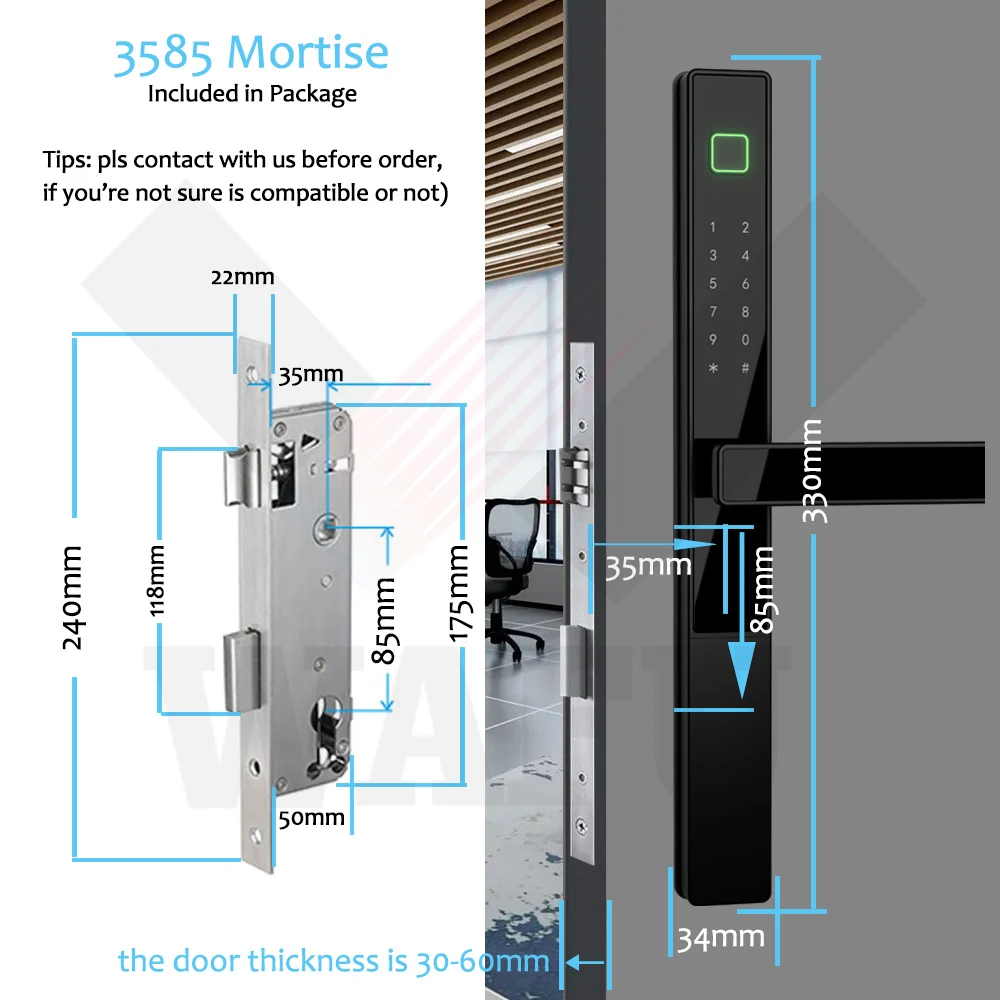

| Mortise Lock Body | 3585 mortise; 22 x 240 mm body, 35 mm backset reference |
| Unlock Methods | Fingerprint, password, RFID card and mechanical key |
| Fingerprint Capacity | Up to 50 fingerprints |
| Password Capacity | Up to 20 password groups |
| Card Capacity | Up to 50 cards |

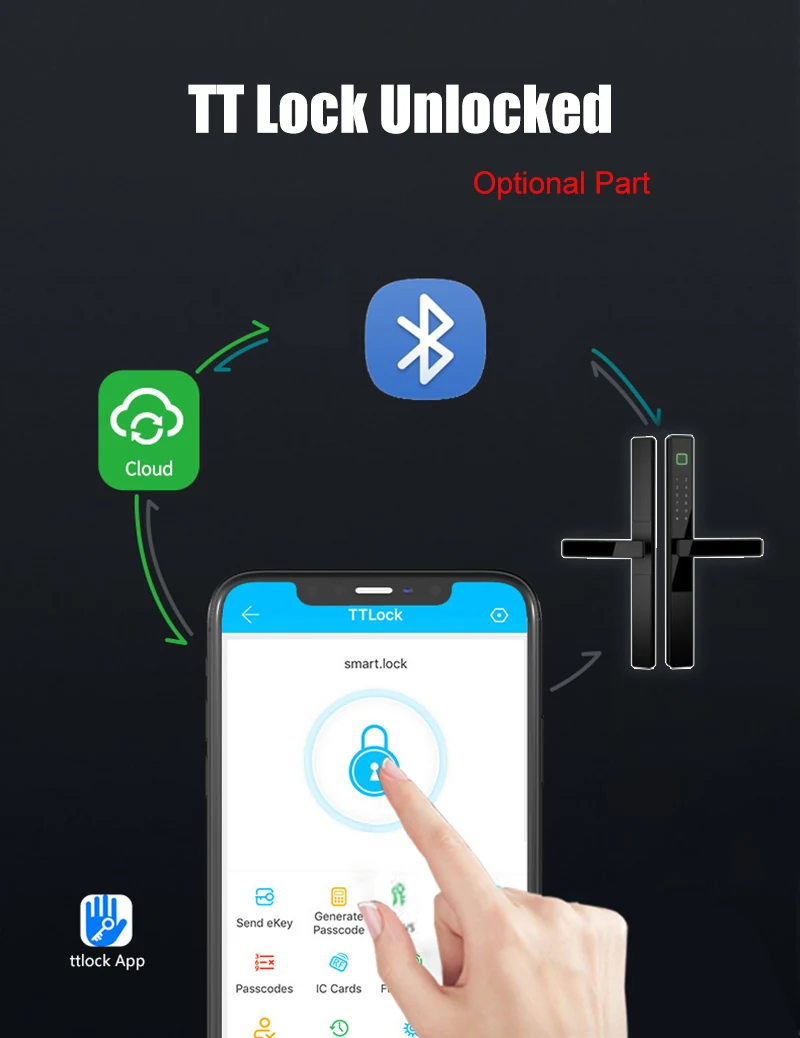

| Optional Functions | TT Lock App unlock; double-fingerprint configuration |
| Voice Languages | Chinese, English, French, Italian, German, Portuguese, Spanish and Russian |
| Power Supply | 4 x AAA alkaline batteries, not included |
| Battery Life | Approximately 6 months, depending on usage |
| Emergency Power | 5V USB |
| Working Temperature | -10 to 50 C |
| Working Humidity | Below 95% RH |
| Package Size | Approx. 37.3 x 17 x 5.2 cm |
| Package Weight | Approx. 1.6 kg |
| Carton Quantity | 20 pcs per carton |
| Packing List | Front panel, rear panel, lock body, 2 cards, 2 keys, user manual and screws bag |
